Understanding Plinth Beam in Building Construction

by Ashiana / / 3291 views/ Reading Time: 4 minutes

A strong foundation is crucial for ensuring a building’s durability and stability. A plinth beam is one of the essential components of foundation work, playing a key role in transferring the loads from the wall to the foundation. Understanding the importance of a plinth beam in construction is pivotal for a builder, architect, or homeowner. This article will explain the purpose of placement, size, and significance of the plinth beam.

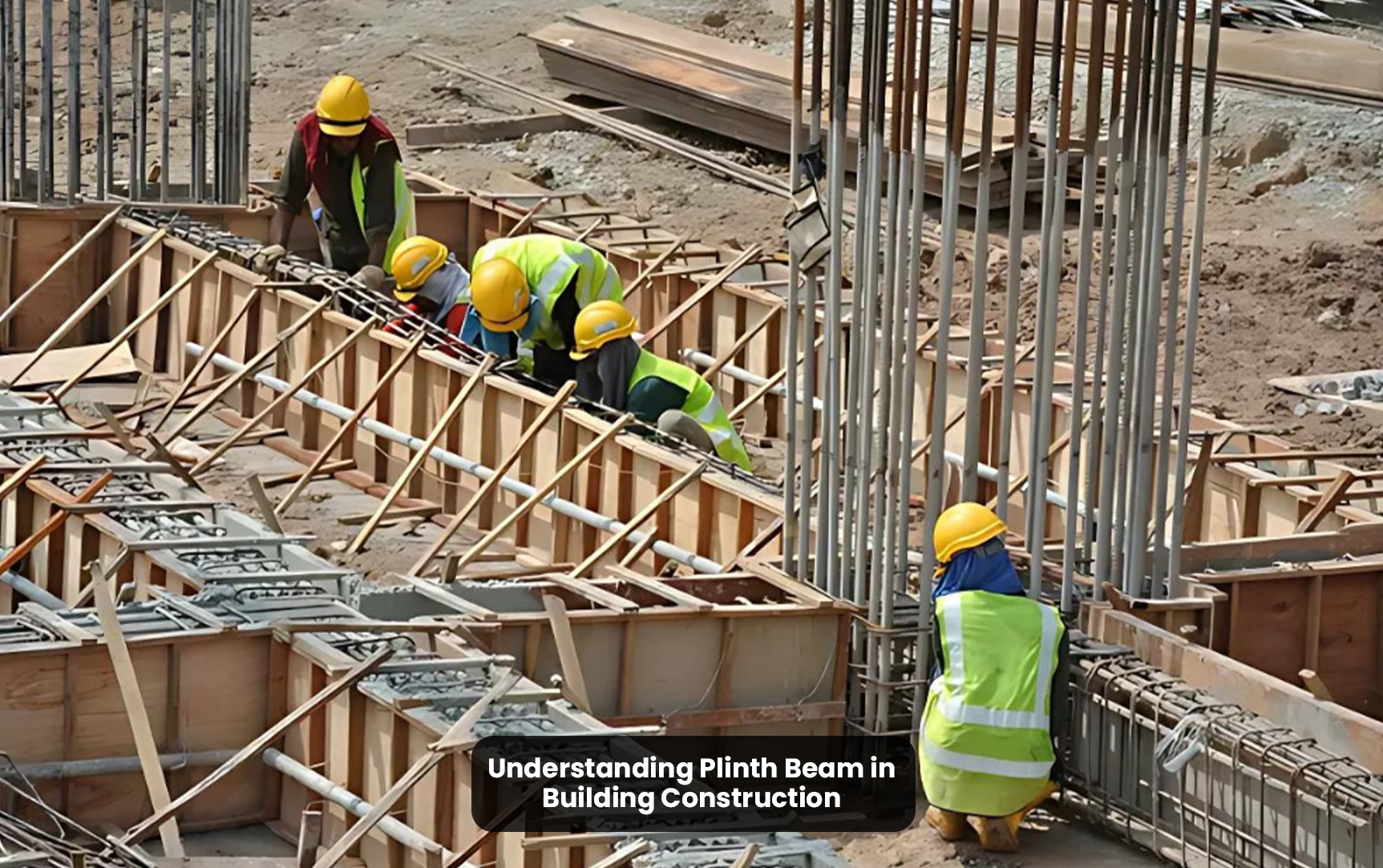

Understanding Plinth Beam in Building Construction

What is a Plinth Beam?


A plinth is a reinforced concrete beam constructed between the foundation and the wall, usually just above ground level. It serves as a base to evenly distribute the structure’s load to the concrete foundation below. The plinth beam helps prevent differential settlement, ensuring the building remains structurally firm.

What is Plinth Level?


The plinth level refers to the height above ground level where the plinth beam foundation is positioned. It is the point where the superstructure starts, marking the transition from the foundation to the vertical walls. A well-constructed plinth level offers protection against ground moisture and minimizes the risk of cracks due to settlement.

What is the Size of a Plinth Beam?


Plinth beam size depends upon the building’s structural design and local requirements. The width of the plinth beam matches the thickness of the wall, while its depth ranges between 200mm to 450mm. The exact size of the plinth beam depends on the building’s load-bearing capacity, footing foundation, and concrete structures being built.

Plinth Beam: Where is it Placed?


The plinth beam is placed at the plinth level above the footing concrete and foundation.  It runs horizontally along the structure’s walls, connecting columns and providing lateral stability. The beam supports the masonry work, ensuring the walls are evenly aligned and stable.

Plinth Beam: How is it Different Than a Tie Beam?


Aspect Plinth Beam Tie Beam
Position Laid at the foundation level Positioned higher up between columns
Purpose Distributes load from walls to the foundation Connects two columns to reduce buckling risk
Function Stabilizes the foundation Stabilizes the columns
Load Distribution Primarily handles vertical loads Primarily provides lateral stability

Understanding Plinth Beam in Building Construction

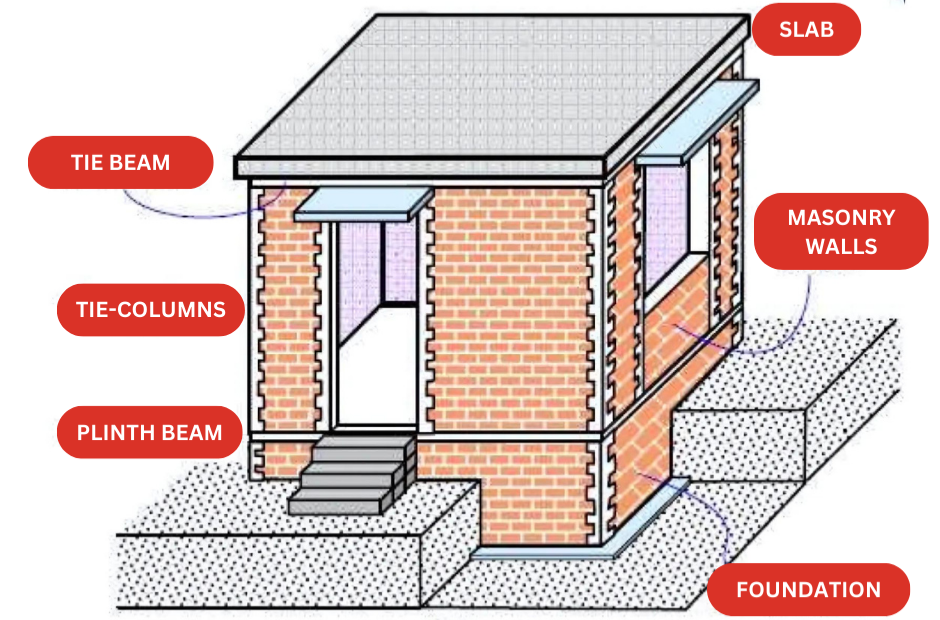

Image Source: Amtaargc

Plinth Beam: Material Requirements for a Plinth Beam of the Building


The materials required for constructing a plinth beam include:

  •       Cement: For binding aggregates and reinforcing the beam.
  •       Coarse and Fine Aggregates: These are used in reinforced concrete to provide mass and stability.
  •       Steel Reinforcement Bars: Essential for increasing the tensile strength of the beam.
  •       Water: For mixing concrete and maintaining workability.
  •       Formwork in Construction: To shape and hold the concrete in place until it hardens.

The quality and proportions of these materials must meet construction standards to ensure the beam’s strength and durability.

Plinth Beam: Construction Procedure


  •       Excavation and Footing Foundation: The foundation trenches are dug, and the footing concrete is poured.
  •       Formwork in Construction: Shuttering or formwork is installed along the plinth beam’s path.
  •       Reinforcement Placement: Steel reinforcement bars are laid as per the structural design.
  •       Concrete Pouring: The reinforced concrete is poured into the formwork.
  •       Curing: After setting, the beam undergoes a curing process to achieve maximum strength.

Each step in the plinth beam construction process is critical to achieving a solid, durable foundation.

Plinth Beam: Purpose and Significance


The Plinth Beam is an essential component in construction, providing key benefits for a building’s stability and longevity.

Key Purpose of a Plinth Beam:

  1. 1. Prevents Differential Settlement Plinth beams improve structural strength as they ensure even load distribution across the foundation, minimizing the risk of cracks due to unequal settling.
  2. 2, Enhances Structural Stability By adding support to the foundation and walls, plinth beams provide stability, especially in earthquake-prone areas. They also help resist lateral forces like wind, reducing the risk of failure & buildings cracking down to rubbles.
  3. 3. Prevents Moisture and Dampness Since it is positioned above ground level, plinth beams act as a great barrier against moisture. It prevents water seepage and dampness from the water running at ground level and outdoor road drainages.
  4. 4. Reduces Cracks and Maintenance Plinth beams help prevent cracks in the walls and provide a level base for strong constructions, reducing structural strain and the need for maintenance over time.
  5. 5. Improves Durability and Longevity Overall, plinth beams enhance the building’s strength, reducing the chances of structural failure and extending the building’s lifespan.

Understanding Plinth Beam in Building Construction

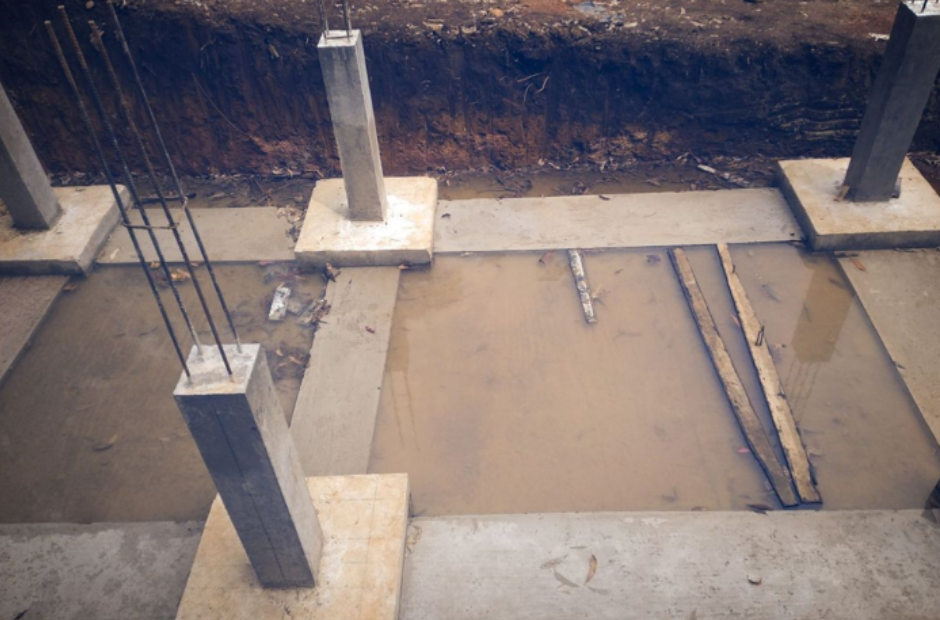

Image Source: Magic Bricks

Conclusion


The plinth beam is an integral construction component that significantly contributes to a structure’s stability and durability. The plinth beam prevents differential settlement and ensures even weight distribution by effectively distributing loads from the walls to the foundation. Its strategic placement at the plinth level safeguards against moisture and enhances the overall strength of the building. Additionally, understanding the proper materials and construction procedures involved in creating a plinth beam is essential for builders, architects, and homeowners alike. Investing in a well-designed plinth beam not only promotes structural integrity but also extends the longevity of the building, making it a vital consideration in any construction project.
Tags: real estate, ashiana housing,
Category: Real Estate, Investment,

Don't forget to share this valuable article with others

Q1. What size is a plinth beam?

Plinth beams are typically 300mm to 450mm in height, with a width matching the walls. The minimum RCC plinth beam size for single-story structures should be 9″ x 9″ (225mm x 225mm), but multi-story buildings may need larger dimensions.

Foundation beams are placed below the ground and support the building by transferring loads to the soil. Plinth beams are above ground at the plinth level, distributing loads from walls and preventing settlement. Essentially, foundation beams stabilize the building’s base, while plinth beams ensure ground-level stability.

Plinth Beam vs. Tie Beam:

  • Plinth Beam: Positioned at the foundation level, the plinth beam distributes the loads from the walls to the foundation, preventing differential settlement and stabilizing the structure.
  • Tie Beam: Located higher between columns, tie beams connect two columns to provide lateral stability and reduce the risk of buckling, ensuring overall structural integrity.

Difference between DPC (Damp Proof Course) and Plinth Beam:

  • DPC (Damp Proof Course): This is a barrier, typically made of waterproof materials, placed at the plinth level to prevent moisture from rising through the walls of a building. It protects the structure from dampness and water-related damage.
  • Plinth Beam: This is a reinforced concrete beam situated at the foundation level that helps distribute loads from the walls to the foundation. It provides structural stability and prevents differential settlement.
